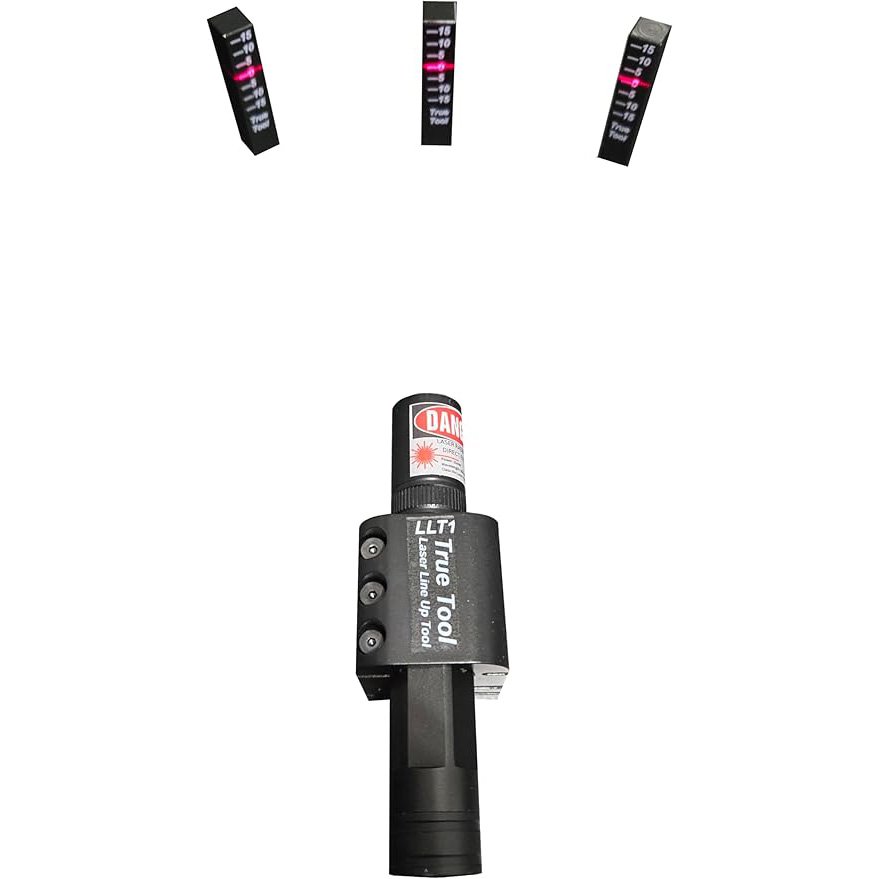

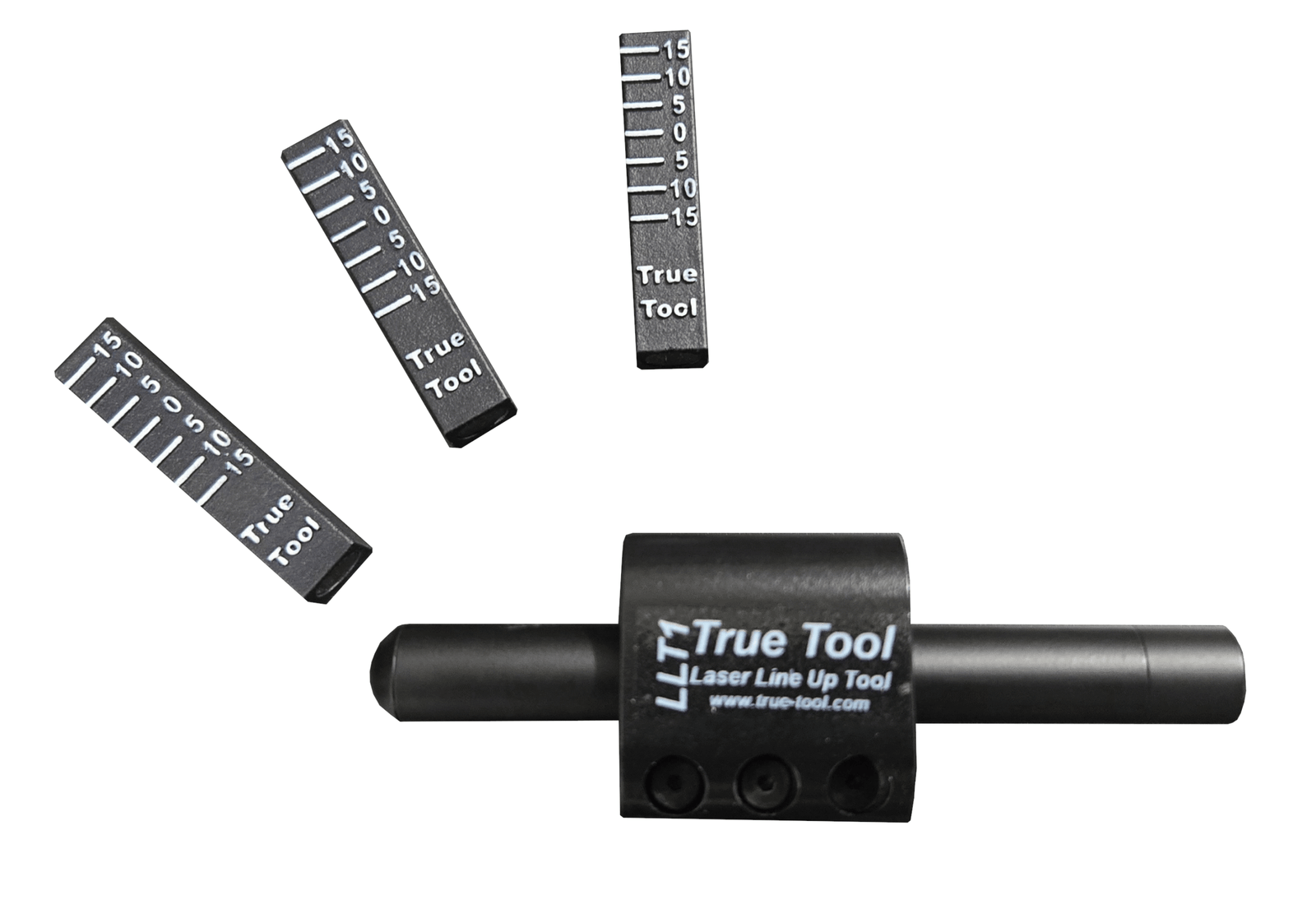

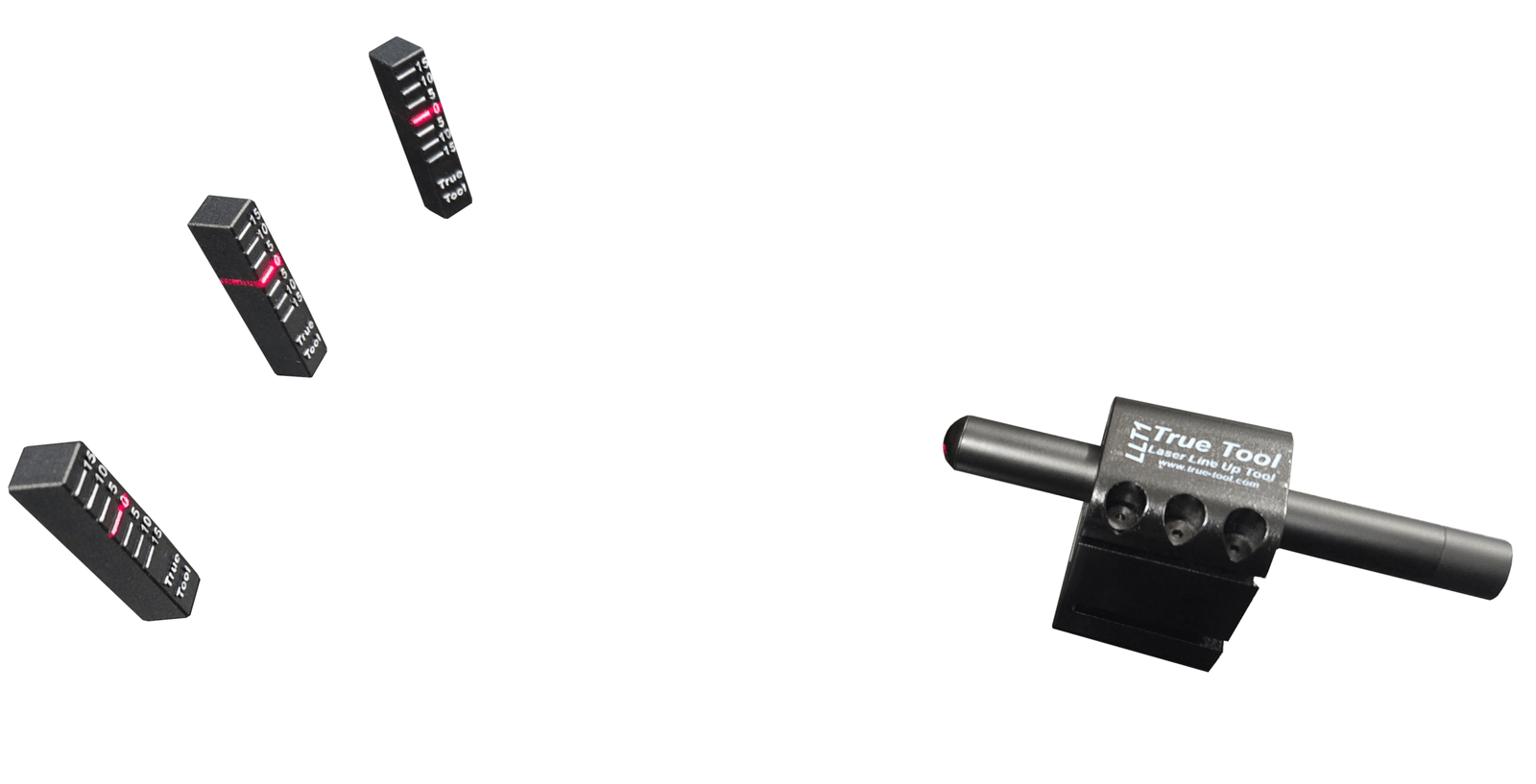

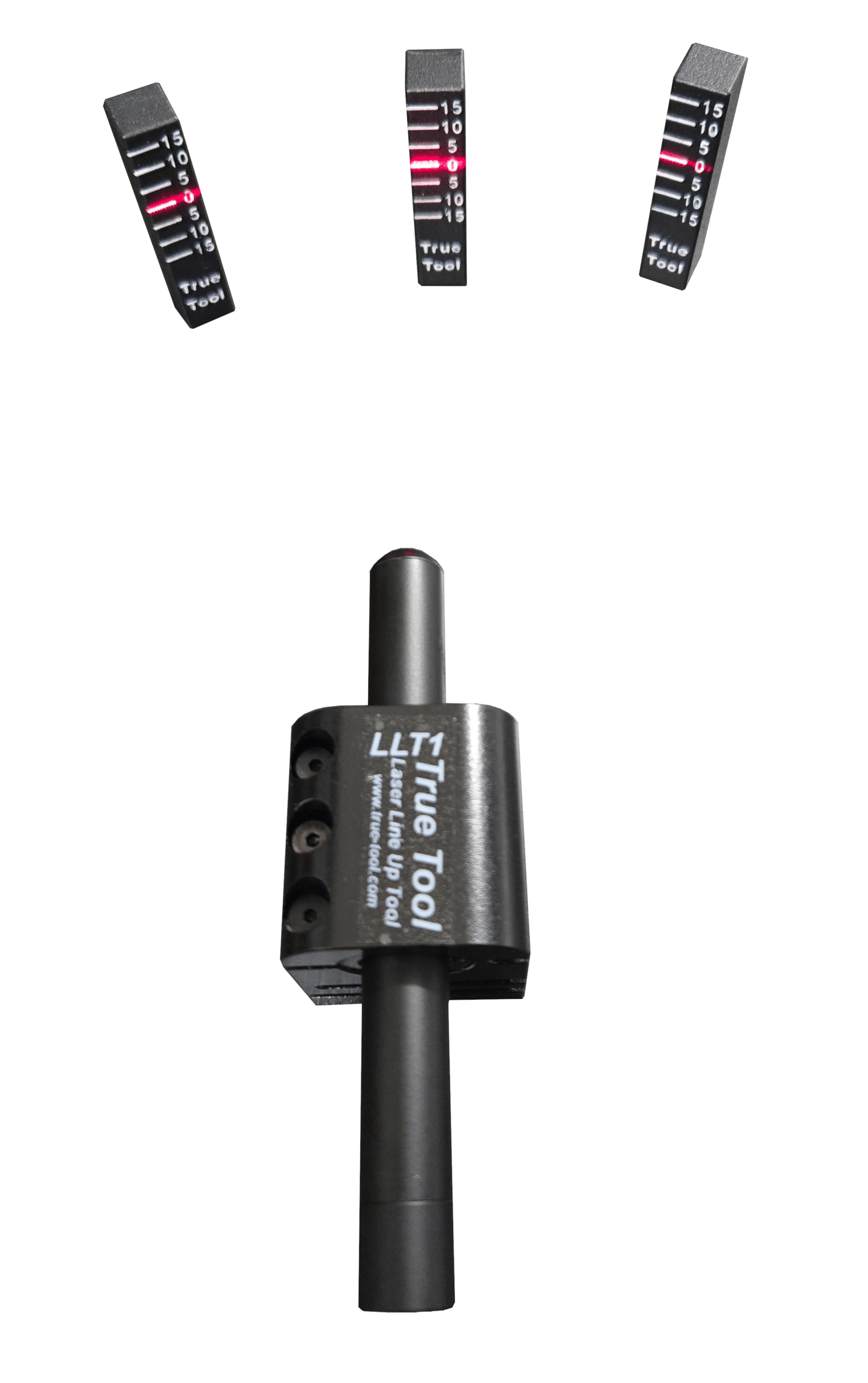

True Tool LLT1 Laser Line Up Tool
True Tool LLT1 Laser Line Up Tool
$549.99
Laser Line Up Tool – Belt, Pulley, Sheave, Chain, and Sprocket Alignment Tool
Out of stock
Compare- No Standalone lithium batteries are sold with the product. You must obtain a CR132A or rechargeable 16340 battery separately.
- Checking for proper alignment on belt and chain drives increases drive efficiency, power transmission, and component life. Proper alignment also reduces heat, noise, and downtime. This tool is the perfect solution for HVAC and other Industrial applications.
- This tool checks all forms of misalignment. Many other laser alignment tools only check 1 or 2. LLT1 also has no mirrors which can reflect laser beams unpredictably. LLT1 uses magnets to mount and therefore requires a steel or iron surface. It can mount and function in any orientation while allowing the user to see adjustments in real time.

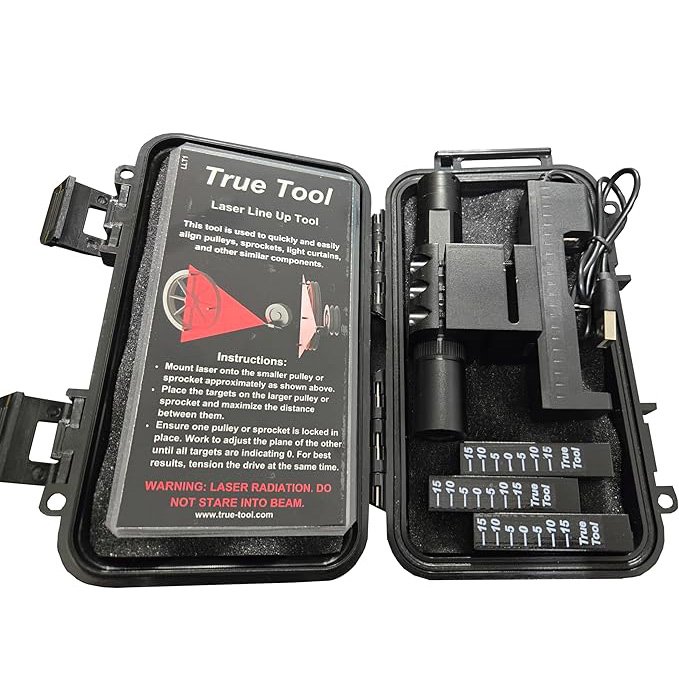

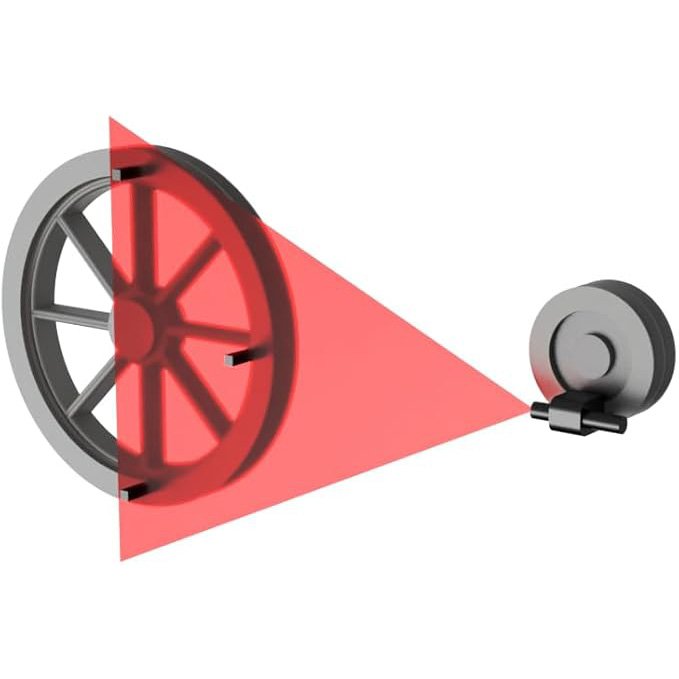

- Simple alignment procedure: Mount laser onto the smaller pulley, pointed towards the larger pulley. Place the targets on the larger pulley or sprocket. To increase accuracy, maximize the distance between the targets. Ensure one pulley or sprocket is locked in place. Turn the laser on and work to adjust the plane of the other until all targets are indicating 0. For best results, tension the drive at the same time.
- Replaces Bestorq LAT1, Gates EZ Align, Fluke 835, SKF TKBA, Easy-Laser D92 & XT90, B.A.T., Laser Tools Co GL80 & 85 LX, Johnson 40-6210, VibrAlign Belt Hog, Seiffert KX-3550, PowerLine L80 etc.
- General Specifications: Accuracy ±0.5°, Working Angle: 60°, Max Laser Power 5 mW, Laser Wavelength 650 nm, Class IIIa, Working Voltage 3-5 V, Operating Altitude: <6500 ft, Relative Humidity: <80%, Operating Temp: 20°F to 120°F, Storage Temp: 0°F to 130°F
Additional information
| Weight | 32 oz |
|---|---|
| Dimensions | 10 × 6 × 4 in |
